Insulated Clamped Pipe Shoe | Anchorage Pipe Supports

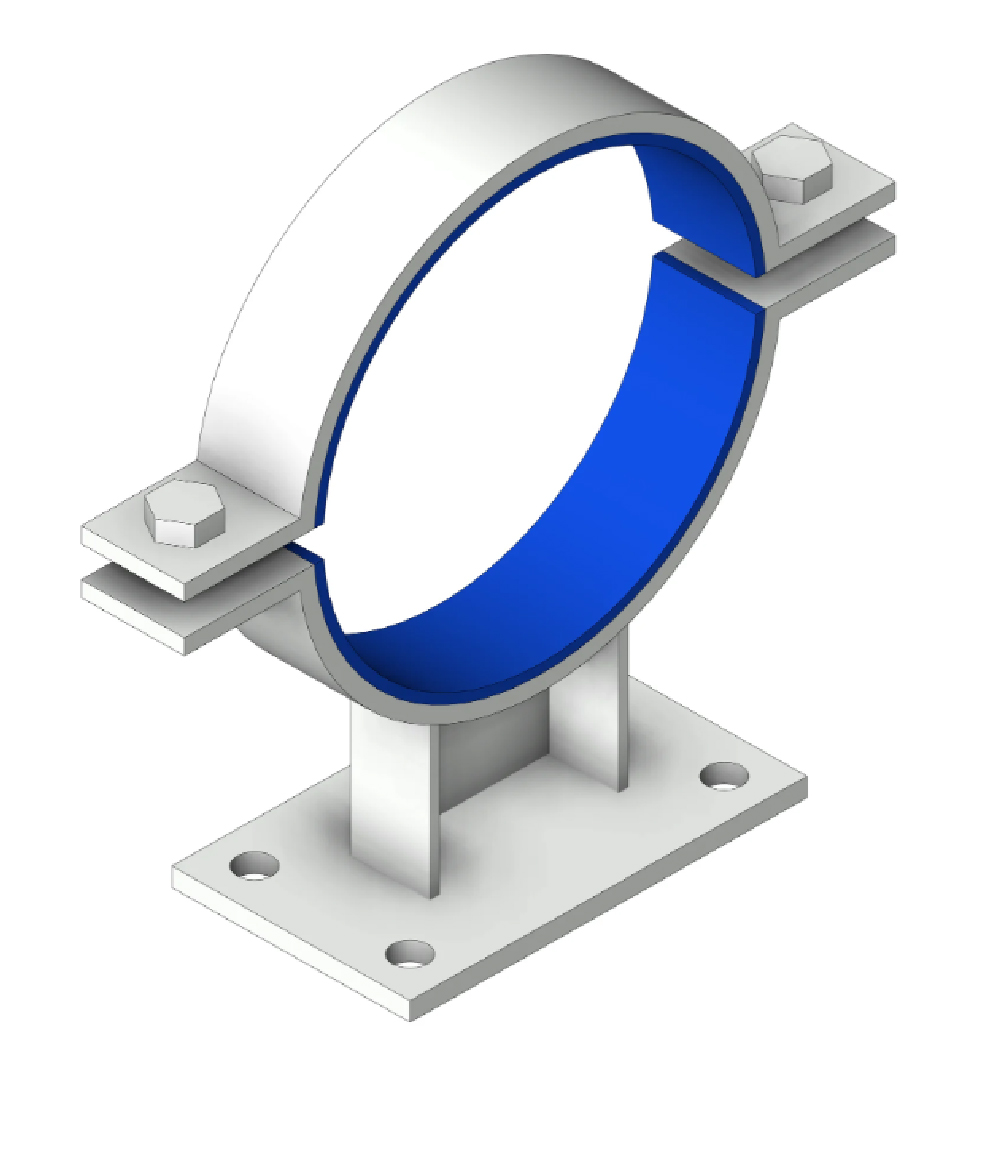

INSULATED CLAMPED PIPE SHOE AG595 AG595

• Galvanised carbon steel

• Available in stainless steel

• Petrochemical resistant neoprene insulation

• Clamps as per AG130

• Design varies with pipe sizing

• Up to 100°C

• Not suited for lateral movements

• Customer to specify BOP (Base of Pipe)

• Custom versions and sizes available

• Manufactured in Australia

QUICK QUOTE View BIM/CAD Files Custom Enquiry FAQs

Product Data

Product is available with varying sizing and technical specifications. When specifying or quoting, ensure you use the correct part number for your application.

Part Number	Pipe DN	ØD (mm)	W (mm)	Item Weight (Kg)	Add to quote

AG595-048	40	48	133	6.20
AG595-060	50	60	133	7.40
AG595-076	65	76	133	7.60
AG595-089	80	89	133	7.90
AG595-114	100	114	133	9.80
AG595-168	150	168	133	14.20
AG595-219	200	219	150	24.10
AG595-273	250	273	150	32.90
AG595-324	300	324	200	38.50
AG595-356	350	356	200	39.90
AG595-406	400	406	250	45.90
AG595-457	450	457	300	60.00
AG595-508	500	508	350	67.80
AG595-559	550	559	350	74.60
AG595-610	600	610	400	83.50
AG595-660	650	660	400	144.50
AG595-711	700	711	400	150.70
AG595-762	750	762	500	188.70
AG595-813	800	813	500	241.80
AG595-864	850	864	500	251.20
AG595-914	900	914	550	262.60
AG595-966	950	966	550	284.50
AG595-1016	1000	1016	550	293.70
AG595-1066	1050	1066	650	310.30
