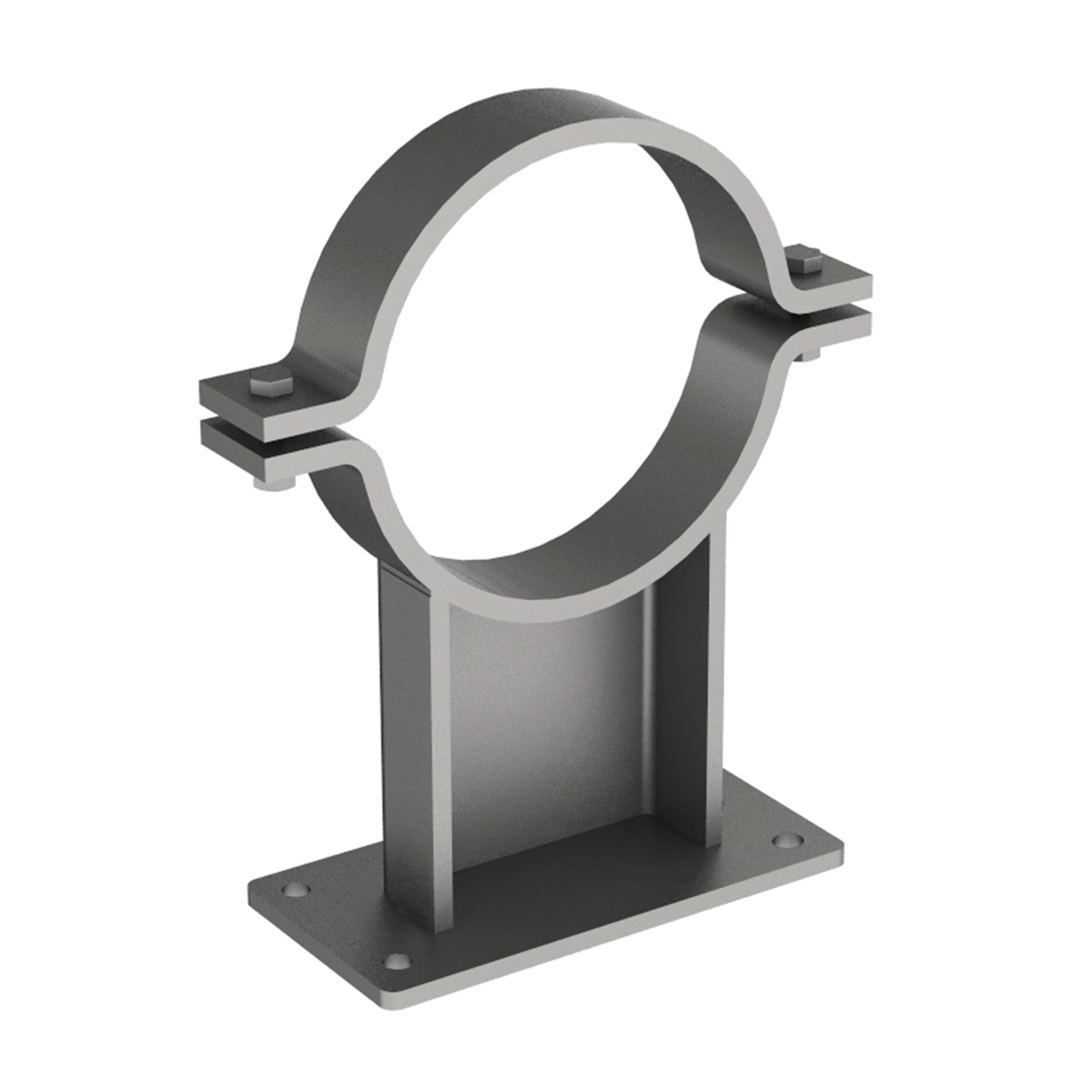

Single Pipe Shoe AG565

• Galvanised carbon steel

• Available in stainless steel

• Clamp as per standard AG110

• Design varies with BOP & DN sizes

• Weight and load rating based on 100mm BOP

• Galvanised - up to 200°C

• Customer to specify BOP (Base of Pipe)

• Custom versions and sizes available

• Manufactured in Australia

QUICK QUOTE View BIM/CAD Files Custom Enquiry FAQs

Product Data

Product is available with varying sizing and technical specifications. When specifying or quoting, ensure you use the correct part number for your application.

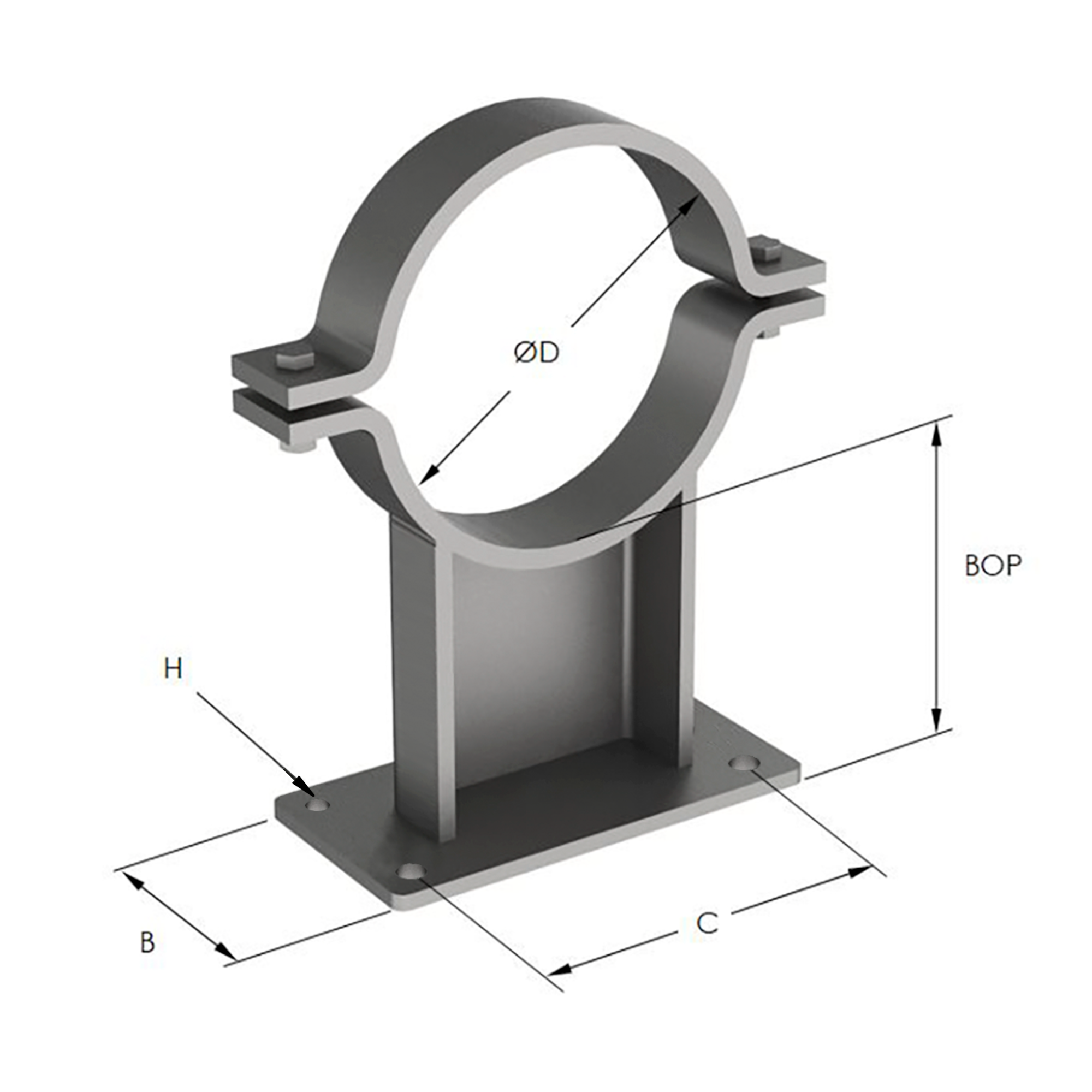

Part Number	Pipe DN	ØD (mm)	C (mm)	C2 (mm)	ØH (mm)	SWL (Kg)	Add to quote

AG565-048	40	48	100	66	14	100
AG565-060	50	60	100	66	14	100
AG565-076	65	76	138	58	18	100
AG565-089	80	89	138	58	18	150
AG565-114	100	114	138	58	18	150
AG565-168	150	168	138	58	18	150
AG565-219	200	219	158	58	18	150
AG565-273	250	273	198	98	22	150
AG565-324	300	324	198	98	22	240
AG565-356	350	356	198	98	22	290
AG565-406	400	406	198	98	22	360
AG565-457	450	457	323	98	22	670
AG565-508	500	508	323	98	22	670
AG565-559	550	559	323	98	22	670
AG565-610	600	610	323	98	22	670

BIM Files (Free Download)

Enjoy free access to our high quality design files to streamline and ensure accuracy with your design and planning process.

Revit 2021 672 KB Download
Revit 2022 681 KB Download
Revit 2023 690 KB Download
Revit 2024 714 KB Download
Revit 2025 724 KB Download

Autocad 683 KB Download
Step 987 KB Download
Product Images 806 KB Download
User Guide 3 MB Download

Visit BIM Library
